Mityvac MV8500 Silverline Elite Vacuum Pressure Pump Kit Brake Bleeder

The Mityvac MV8500 Silverline Elite Automotive Test Kit is a professional dual-function vacuum and pressure hand pump kit designed for automotive diagnostics, one-person brake and clutch bleeding, fluid evacuation and a wide range of mechanical testing applications.

At the centre of the kit is the Mityvac MV8510 Silverline Elite hand pump, a durable, ergonomically designed manual pump capable of generating either vacuum or positive pressure at the turn of a selector switch.

Unlike conventional vacuum-only hand pumps, the MV8500 combines vacuum generation and pressure generation in one versatile tool, reducing the need for separate pumps and expanding the range of automotive servicing and diagnostic tasks that can be performed.

The MV8510 features a 2-inch (50mm) diaphragm-style compound vacuum and pressure gauge, protected by a rubber boot, allowing technicians to monitor the applied vacuum or pressure during testing.

Its one-finger trigger release, comfortable ergonomic design and squeeze-stroke operation provide convenient control when carrying out precision diagnostic work.

The complete MV8500 Silverline Elite kit includes a 135ml fluid collection reservoir, tubing, tapered adapters, bleed screw adapters, vacuum caps, a master cylinder refill kit and a custom-moulded storage case.

Designed for professional garages, automotive technicians, fleet maintenance workshops and experienced vehicle enthusiasts, the MV8500 provides a comprehensive solution for numerous vehicle testing and maintenance procedures.

Applications include brake bleeding, clutch bleeding, diesel fuel system priming, vacuum system testing, turbocharger-related diagnostics, power steering fluid evacuation and other suitable automotive maintenance operations.

Key Features

• Genuine Mityvac Silverline Elite Automotive Test Kit
• Manufacturer part number: MV8500
• Includes the Mityvac MV8510 dual-function hand pump
• Vacuum and positive pressure generation in one tool
• Switch between vacuum and pressure using the pump selector
• Ergonomic hand pump design for comfortable operation
• One-finger vacuum and pressure release trigger
• Vacuum and pressure generated on the squeeze stroke
• Provides controlled manual operation for diagnostic testing
• Integrated 2-inch / 50mm compound vacuum and pressure gauge
• Diaphragm-style gauge mechanism
• Protective rubber gauge boot
• Suitable for one-person brake bleeding
• Suitable for compatible clutch bleeding procedures
• Useful for diesel fuel system priming
• Suitable for automotive vacuum diagnostics
• Useful for selected turbocharger control system tests
• Suitable for compatible fluid transfer and evacuation applications
• Includes 135ml fluid reservoir bottle
• Includes master cylinder refill kit MVA6825
• Includes a comprehensive selection of tubing, adapters and vacuum plugs
• Supplied in a custom-moulded storage case
• Field-serviceable hand pump
• Replacement servicing components and maintenance kits available separately
• Suitable for professional automotive workshops and vehicle maintenance

Dual-Function Vacuum and Pressure Hand Pump

The main advantage of the Mityvac MV8500 Silverline Elite is its ability to generate both vacuum and positive pressure using a single hand-operated pump.

The included MV8510 hand pump incorporates a selector mechanism that allows the operator to switch between the two operating modes.

In vacuum mode, the pump can be used to draw air from compatible components and systems.

In pressure mode, the pump can be used to apply controlled positive pressure to suitable components for testing and diagnosis.

This dual-function capability greatly expands the range of possible workshop applications compared with a conventional vacuum-only hand pump.

The ability to perform both functions using one tool also helps reduce the amount of specialist equipment required in a professional diagnostic tool collection.

Mityvac MV8510 Silverline Elite Hand Pump

The MV8510 is the professional hand pump supplied within the MV8500 kit.

It features an ergonomic design intended to provide comfortable operation during repeated use.

Both vacuum and pressure are generated during the squeeze stroke, allowing the operator to apply force progressively and monitor the resulting gauge reading.

The hand pump also incorporates a convenient one-finger trigger release, enabling the operator to release applied vacuum or pressure without disconnecting the test equipment.

This makes the pump useful for procedures requiring repeated application and release of vacuum or pressure.

The MV8510 is also field serviceable, with compatible maintenance and replacement components available separately.

2-Inch / 50mm Compound Vacuum and Pressure Gauge

The MV8510 hand pump is fitted with a 2-inch (50mm) diameter compound gauge.

Unlike a vacuum-only gauge, a compound gauge is designed to indicate both vacuum and positive pressure, supporting the pump's dual-function operation.

The gauge uses a diaphragm-style measuring mechanism and is fitted with a protective rubber boot.

The clear gauge display allows technicians to monitor the applied vacuum or pressure while carrying out suitable diagnostic procedures.

This is particularly useful when checking the response of vacuum-operated actuators, testing pressure-operated components or observing whether a system maintains an applied test level.

Always refer to the relevant vehicle or equipment manufacturer's specifications for the correct testing pressure, vacuum level and procedure.

One-Person Brake Bleeding

The Mityvac MV8500 is suitable for one-person brake bleeding, providing a convenient alternative to conventional two-person brake bleeding methods.

When configured for vacuum-assisted brake bleeding, the hand pump draws brake fluid and trapped air through a suitable bleed screw connection.

The included 135ml fluid reservoir collects extracted brake fluid, helping prevent fluid from reaching the pump mechanism.

The kit contains both tapered and universal bleed screw adapters, providing connection options for different compatible vehicle applications.

The included MVA6825 master cylinder refill kit can assist with maintaining the brake fluid supply during appropriate bleeding procedures.

This makes the MV8500 particularly useful for routine brake maintenance, brake fluid replacement and suitable hydraulic system servicing.

Important: Always follow the vehicle manufacturer's brake bleeding instructions. Certain ABS, electronically controlled or specialist braking systems may require additional diagnostic equipment or a specific bleeding sequence.

Clutch Bleeding Applications

The MV8500 can also be used for compatible hydraulic clutch bleeding procedures.

Vacuum-assisted bleeding can help draw fluid and trapped air through suitable clutch hydraulic systems, depending on the manufacturer's recommended servicing method.

The included reservoir, tubing and connection adapters provide flexibility for a range of suitable applications.

Always confirm that vacuum bleeding is appropriate for the specific clutch system before beginning work.

Automotive Vacuum Diagnostics

The MV8500 is a versatile tool for diagnosing systems that operate using vacuum.

The ability to generate controlled vacuum allows technicians to test compatible components individually and assess whether they respond correctly.

Potential applications include:

• Vacuum hose and connection testing
• Vacuum diaphragm testing
• Vacuum-operated actuator checks
• Vacuum control valve testing
• Vacuum reservoir testing
• Selected emissions control system diagnostics
• Vacuum-operated turbocharger control testing
• General mechanical vacuum fault diagnosis
• Checking whether suitable components retain applied vacuum

The correct test method and expected readings depend on the vehicle and component being examined.

Positive Pressure Testing

The MV8500 also provides positive pressure generation, allowing suitable components to be tested without requiring a separate pressure pump.

This is useful for applications where controlled manual pressure is required to assess component operation or check for leakage.

The pump's selector switch allows the operator to change from vacuum mode to pressure mode as required.

The compound gauge provides a visual indication of the applied test condition.

Only apply pressure to components and systems specifically designed for the intended test. Do not exceed the equipment or vehicle manufacturer's specified limits.

Diesel Fuel Priming and Fluid Handling

The MV8500 can be used for certain diesel fuel system priming and fluid handling applications, where suitable connections and manufacturer-approved procedures are available.

The manual pump provides a controlled way to generate vacuum or pressure for compatible servicing tasks.

The kit also supports selected fluid transfer, evacuation and sampling operations.

Fluid compatibility must always be confirmed before use.

Do not allow collected fluids to enter the hand pump mechanism, and do not use the equipment with hazardous or incompatible fluids.

Turbocharger and Engine Performance Diagnostics

The dual vacuum and pressure capability makes the MV8500 useful for selected engine performance and turbocharger-related diagnostic procedures.

Many automotive control systems use vacuum or pressure to operate actuators and other components.

The MV8500 allows technicians to apply a controlled test condition to compatible components and observe their response.

This can assist with diagnosing certain actuator, hose and control-system faults.

The MV8500 is a manual diagnostic pump, not a substitute for specialist electronic diagnostic equipment or manufacturer-specified test equipment where those are required.

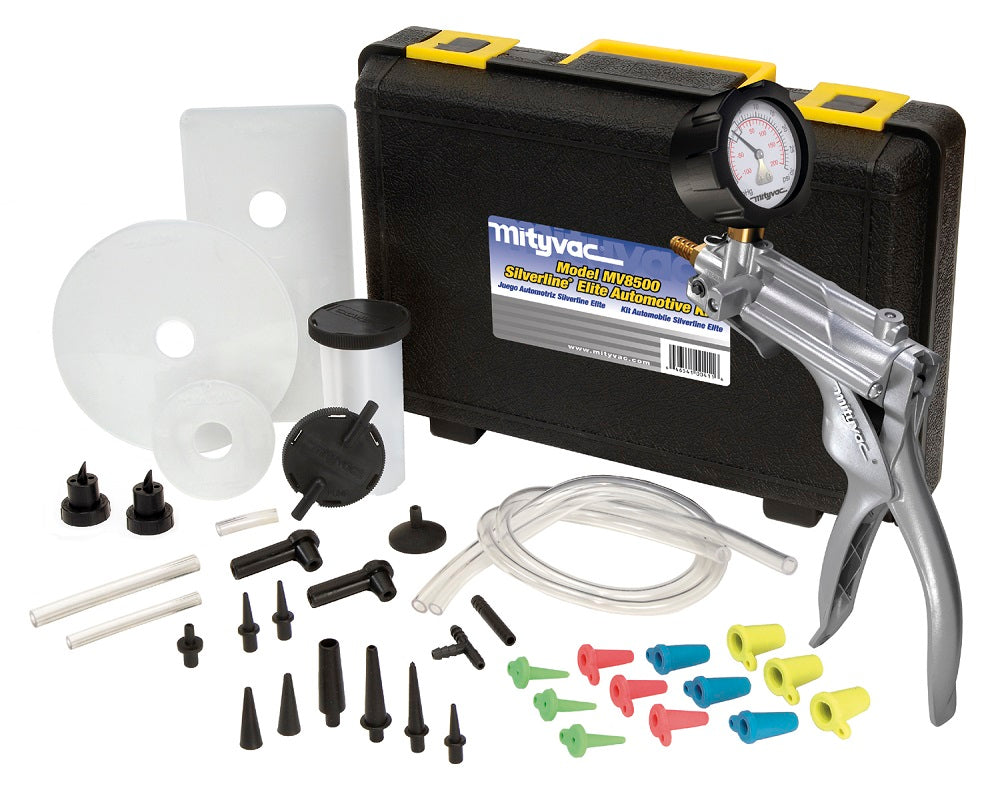

Comprehensive MV8500 Kit Contents

The Mityvac MV8500 Silverline Elite Automotive Test Kit includes the following equipment and accessories:

• 1 x Mityvac MV8510 Silverline Elite Hand Vacuum / Pressure Pump
• Includes 2-inch (50mm) compound gauge and protective rubber boot
• 1 x 135ml / 4.5oz Fluid Reservoir Bottle
• Includes fluid transfer and storage lids
• 4 x Tapered Tubing Adapters
• For tubing with internal diameters from approximately 0.09" to 0.50" (2.3mm to 13mm)
• 2 x Tapered Manifold Plugs
• 2 x Tapered Bleed Screw Adapters
• 2 x Universal Bleed Screw Adapters
• 12 x Vacuum Cap Plugs
• 1 x Vacuum Line T-Adapter
• 1 x 5/32" (4mm) ID to 1/4" (6.4mm) ID Tubing Adapter
• 1 x Rubber Cupped Adapter
• 2 x Connection Tubes – 1/4" (6.4mm) ID x 24" (610mm) Long
• 1 x Connection Tube – 1/4" (6.4mm) ID x 1½" (40mm) Long
• 1 x Fluid Pick-Up Tube – 1/4" (6.4mm) ID x 3⅝" (90mm) Long
• 1 x Vacuum Test Tube – 5/32" (4mm) ID x 3" (75mm) Long
• 1 x Mityvac MVA6825 Master Cylinder Refill Kit
• 1 x Custom-Moulded Storage Case

This comprehensive accessory selection makes the MV8500 suitable for numerous automotive diagnostic and mechanical maintenance procedures.

MVA6825 Master Cylinder Refill Kit Included

The MV8500 includes the Mityvac MVA6825 Master Cylinder Refill Kit.

This accessory is designed to assist with maintaining the brake fluid level in compatible master cylinder reservoirs during appropriate bleeding procedures.

Keeping the master cylinder supplied with fluid is important because allowing the reservoir to run dry can introduce additional air into the hydraulic system.

The MVA6825 provides a convenient accessory for brake servicing when used in accordance with the relevant instructions.

135ml Fluid Collection Reservoir

The kit includes a 135ml / 4.5oz fluid reservoir bottle with fluid transfer and storage lids.

This reservoir is useful for collecting brake fluid and other compatible fluids during appropriate servicing procedures.

It also provides a collection point between the test connection and the hand pump, helping protect the pump mechanism from fluid ingress.

The reservoir should be monitored during use and emptied safely before it becomes overfilled.

Always use suitable personal protective equipment and dispose of used fluids responsibly.

Custom-Moulded Storage Case

The MV8500 is supplied in a custom-moulded storage case.

The case provides organised storage for the hand pump and included accessories, helping keep the equipment together between servicing tasks.

This is particularly useful for professional garages, mobile mechanics and workshop technicians who need to transport diagnostic tools or store them safely when not in use.

Field-Serviceable Pump and Replacement Parts

The Mityvac MV8510 Silverline Elite hand pump is designed to be field serviceable.

Replacement servicing components and maintenance kits are available separately, allowing the pump's serviceable internal parts to be maintained when necessary.

The dedicated Mityvac MVM8900 Pump Rebuild Kit is available separately for servicing the MV8510 pump.

This provides a practical maintenance option for workshops wishing to extend the useful service life of their equipment.

The MVM8900 rebuild kit is not included with the MV8500 automotive test kit.

Professional Applications

The Mityvac MV8500 Silverline Elite is particularly suitable for:

• One-person brake bleeding
• Hydraulic clutch bleeding where compatible
• Automotive vacuum diagnostics
• Positive pressure component testing
• Diesel fuel system priming
• Power steering fluid evacuation where compatible
• Vacuum-operated actuator testing
• Turbocharger control system diagnostics
• Engine performance fault finding
• Vacuum hose and connection testing
• Mechanical pressure and vacuum testing
• Selected fluid transfer and sampling applications
• Professional garage servicing
• Fleet vehicle maintenance
• Mobile mechanic work
• Vehicle restoration workshops
• General automotive maintenance and diagnostics

Technical Specifications

• Brand: Mityvac
• Manufacturer part number: MV8500
• Product range: Silverline Elite
• Product type: Automotive Vacuum and Pressure Test Kit
• Included hand pump: MV8510
• Pump operation: Manual hand-operated
• Pump functions: Vacuum and positive pressure generation
• Mode selection: Vacuum / pressure selector switch
• Pump action: Vacuum and pressure generated on squeeze stroke
• Release mechanism: One-finger trigger release
• Gauge type: Compound vacuum and pressure gauge
• Gauge mechanism: Diaphragm style
• Gauge diameter: 2" / 50mm
• Gauge protection: Rubber boot
• Fluid reservoir capacity: 135ml / 4.5oz
• Tapered tubing adapters: 4
• Tapered manifold plugs: 2
• Tapered bleed screw adapters: 2
• Universal bleed screw adapters: 2
• Vacuum cap plugs: 12
• Vacuum line T-adapter: Included
• Tubing adapter: 5/32" (4mm) ID to 1/4" (6.4mm) ID
• Rubber cupped adapter: Included
• Long connection tubes: 2 x 1/4" ID x 24"
• Short connection tube: 1 x 1/4" ID x 1½"
• Fluid pick-up tube: 1 x 1/4" ID x 3⅝"
• Vacuum test tube: 1 x 5/32" ID x 3"
• Master cylinder refill kit: MVA6825 included
• Storage: Custom-moulded case
• Serviceability: Field serviceable
• Compatible pump rebuild kit: MVM8900 – Available Separately

Primary applications: Automotive diagnostics, brake and clutch bleeding, vacuum and pressure testing

About Mityvac

Mityvac is an established name in professional automotive diagnostic and maintenance equipment, particularly hand-operated vacuum pumps, pressure testing systems and brake bleeding tools.

Mityvac equipment is used by professional mechanics, automotive technicians and workshop users for diagnosing, testing and servicing vehicle systems.

The brand's range includes manual vacuum pumps, combined vacuum and pressure pumps, automotive diagnostic kits, fluid handling equipment and specialist servicing accessories.

The Silverline Elite range combines professional diagnostic capability with ergonomic hand pump design and practical workshop accessories.

The MV8500 Silverline Elite Automotive Kit is a versatile example of this approach, providing vacuum and pressure generation in one complete diagnostic and servicing kit.

Important Information

• Genuine Mityvac MV8500 Silverline Elite Automotive Test Kit
• Includes Mityvac MV8510 vacuum and pressure hand pump
• Dual vacuum and positive pressure operation
• 2-inch / 50mm compound gauge with protective rubber boot
• One-finger release trigger
• Ergonomic manual pump design
• 135ml fluid collection reservoir included
• Includes tubing, adapters, bleed screw connections and vacuum cap plugs
• Includes MVA6825 master cylinder refill kit
• Supplied in a custom-moulded storage case
• Suitable for one-person brake bleeding and compatible clutch bleeding procedures
• Suitable for a wide range of automotive vacuum and pressure diagnostic applications
• MVM8900 pump rebuild kit available separately
• The MVM8900 rebuild kit is not included
• Always follow vehicle manufacturer procedures for brake and clutch bleeding
• Certain ABS and electronically controlled brake systems may require specialist diagnostic equipment or additional procedures
• Maintain the correct brake fluid level during bleeding operations
• Do not allow the fluid reservoir to overfill
• Prevent fluids from entering the pump mechanism
• Use only compatible fluids and chemicals
• Never apply vacuum or pressure beyond the specified limits of the component being tested
• Inspect tubing, adapters and connections before use
• The hand pump is a diagnostic and servicing tool, not a substitute for specialist equipment where required by the manufacturer
• This listing is for the complete Mityvac MV8500 Silverline Elite Automotive Vacuum and Pressure Test Kit, including the MV8510 hand pump, accessories, MVA6825 master cylinder refill kit and custom-moulded storage case.
