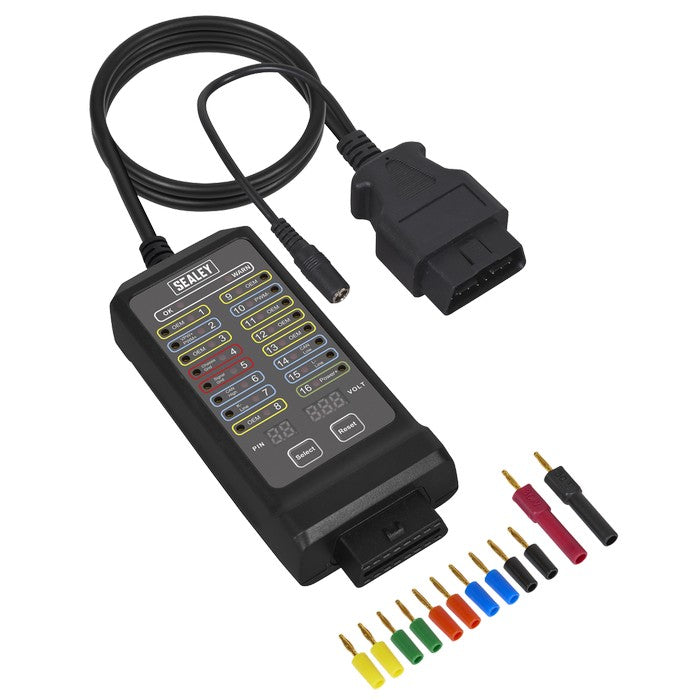

OBD Breakout Box 16-Pin 12V/24V

Test the on-board diagnostics port for any faults before connecting other diagnostic devices to the DLC.
Designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.
Can also be connected to multimeters and oscilloscopes.
Compatible with 12 and 24V systems.
Selectable pin voltage indicator shows the real-time voltage of the selected pin.
Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE.
Overload protection protects any connected diagnostic equipment from damage.
Model No. VS8813
